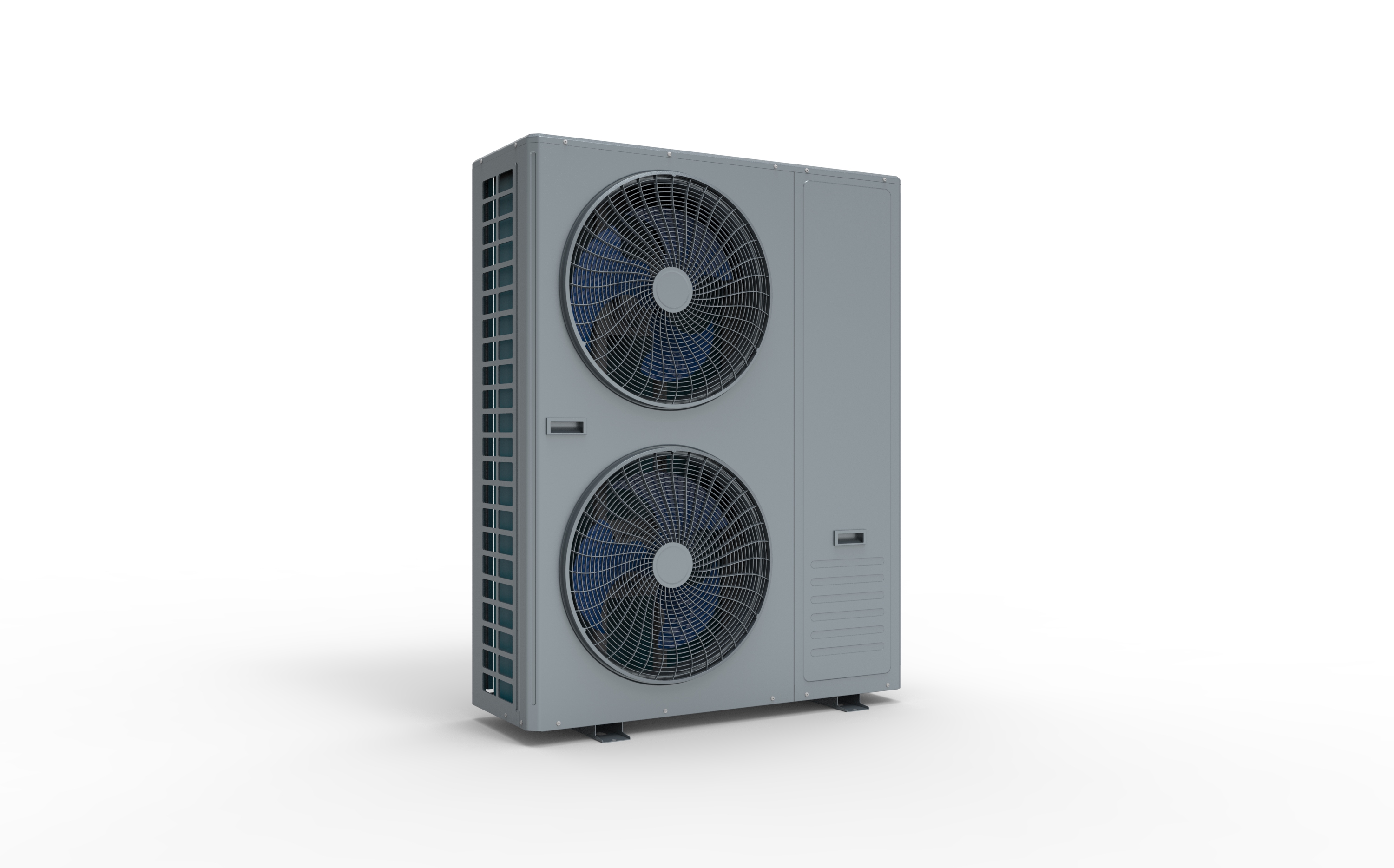

DC Inverter EVI air to water heat pump for Cool & Heat & DHW Mono R32 With Pump
Features
Built-in hydraulic module
The integrated design is adopted, and the water system is fully configured (built-in hydraulic modules such as DC Inverter water pump and water flow switch, with expansion tank and Y-shaped filter), which can effectively reduce the installation time and space of the water system and save installation costs.
Heating energy efficiency level A+++ at water temperature 35 deg C.
Heating energy efficiency level A++ at water temperature 55 deg C.
Equipped with EVI technology, stable operation at ambient temperature -35°C, Wide running range, from -35℃ to 43℃.
Top quality and lowest noise level comes from Mitsubishi DC Inverter compressor

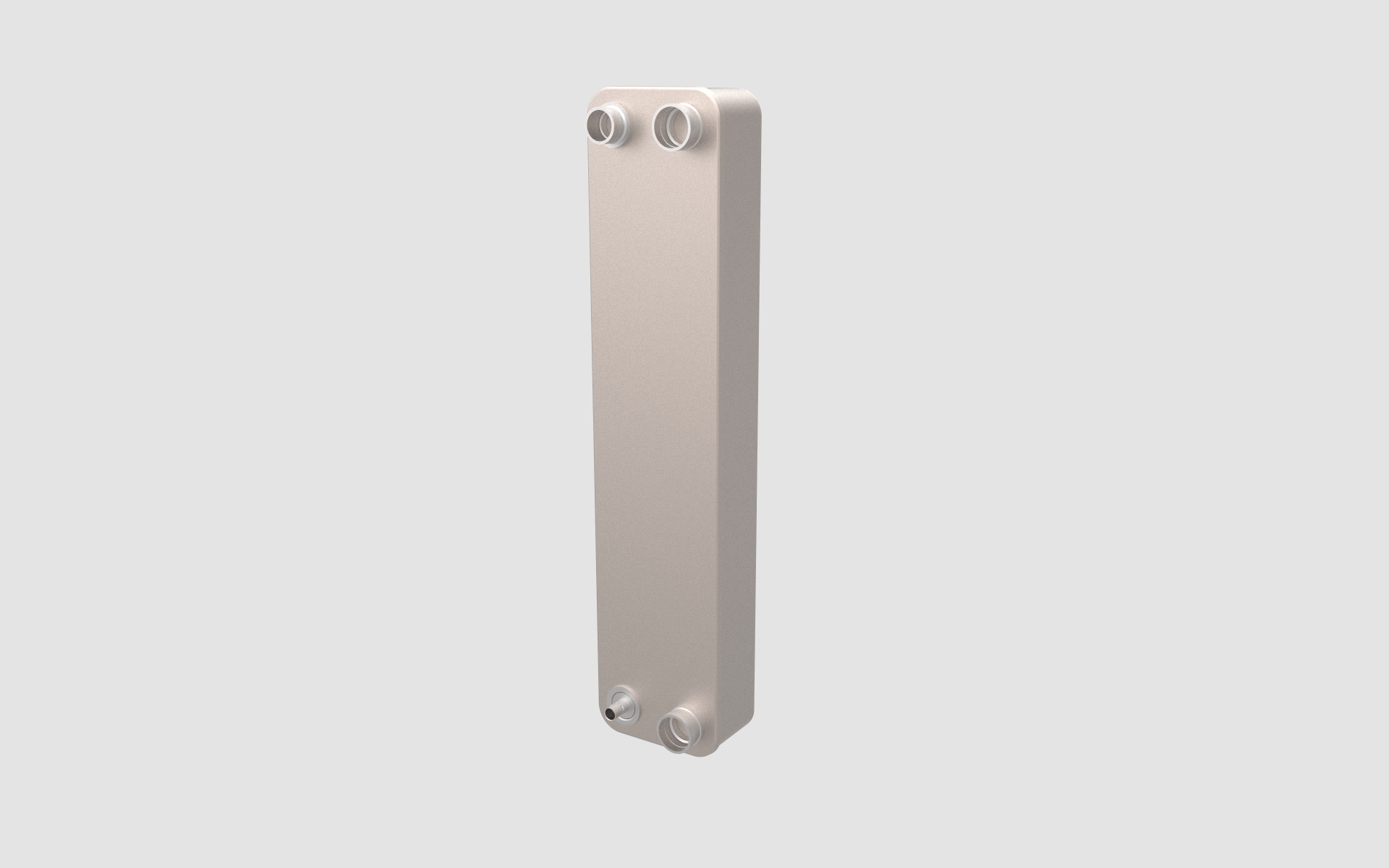

Water side heat exchanger
A high-efficiency plate heat exchanger is adopted, and multi-layer thin rectangular channels are formed between the plates of the heat exchanger, and the refrigerant and water exchange heat through the plates. Due to the multi-channel distribution of the fluid, the heat exchange area is greatly increased, thereby greatly improving the heat exchange efficiency.
New R32 refrigerant, ODP = 0, GWP = 675. Working together to reduce greenhouse gas emissions.

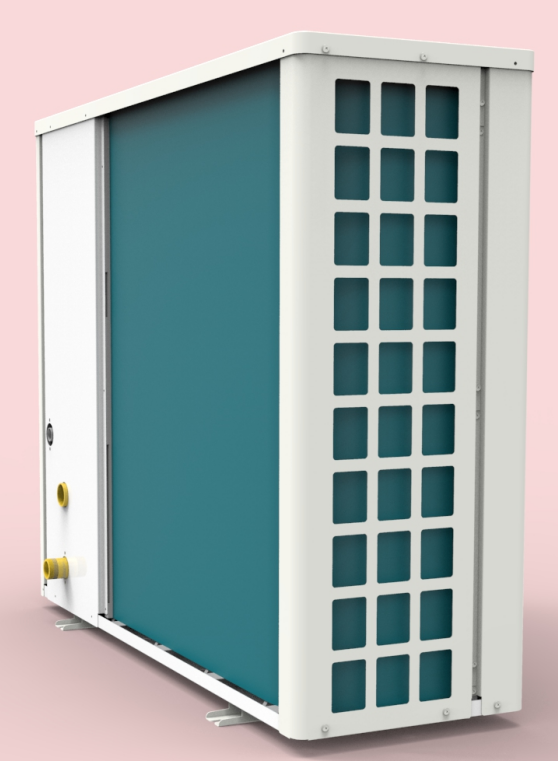

Bottom no frost design
The special liquid separation technology is adopted to make the temperature at the bottom of the evaporator of the unit always higher than the air dew point temperature under the heating condition, so as to ensure that the bottom of the evaporator does not form frost, and the drainage can be smooth during defrosting.
