Mini swimming pool heat pump
DetailParameters

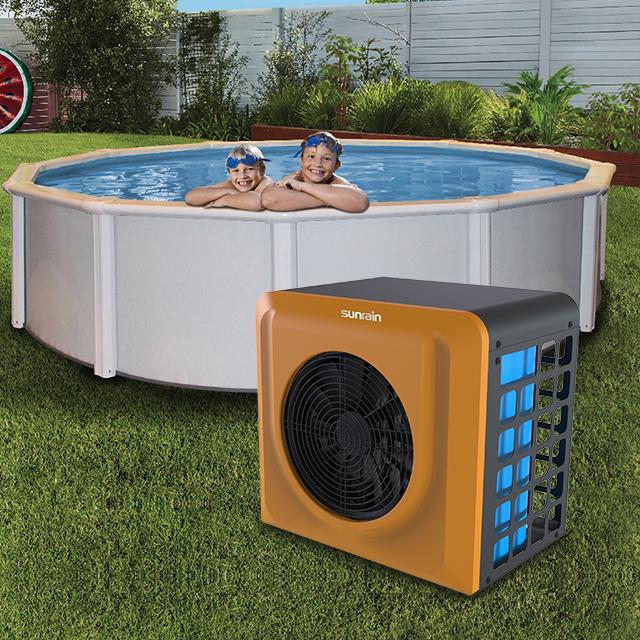

Mini Swimming Pool Heater
Convenient experience

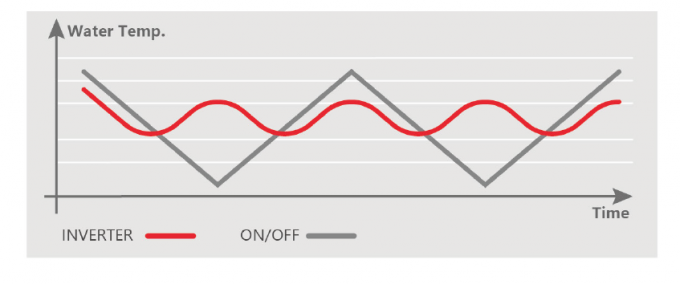

Intelligent Inverter tech will keep the constant water temperature automatically, a much more convenient swimming experience than an ON/OFF system.

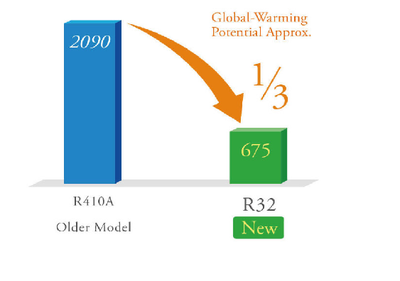

Eco-friendly R32
Much lower influence on Global warming.
Save your cost of F-gas quota by 2/3 than R410A.
Features
make the world cleaner
R32 new refrigerant
True Mini.900+ Pcs for 40HC
COP up to 5.2

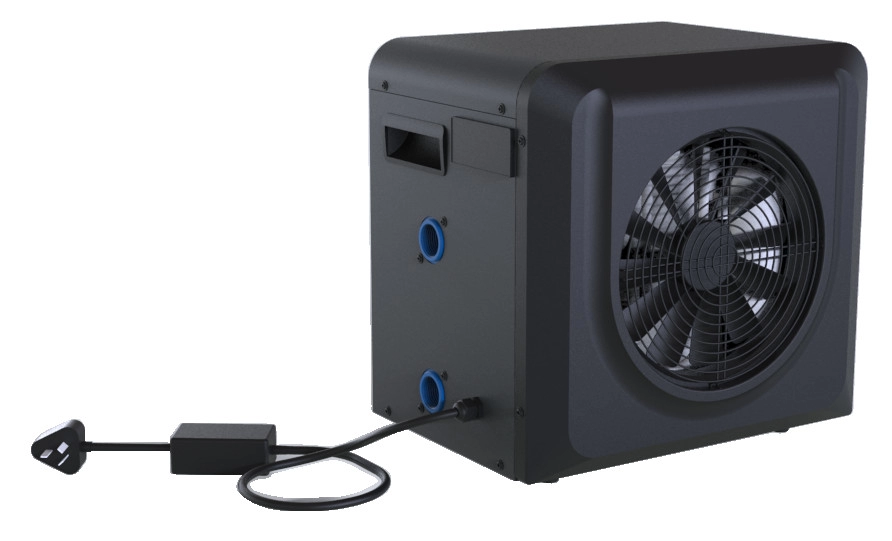

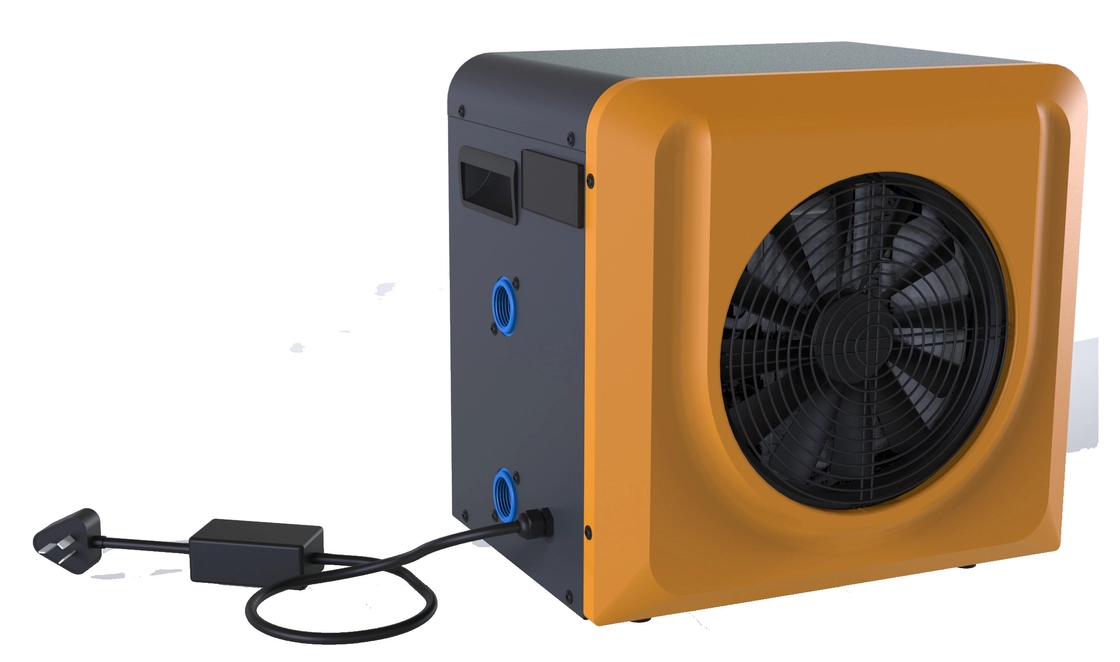

Removable 38/32mm connection
Water flow switch available
3/4/5 KW available
Product Parameters
| Model No. | YC-003TB1 | YC-004TB1 | YC-005TB1 |
| * Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | |||
| Heating Capacity (kW) | 3.00 | 4.00 | 5.00 |
| Power Input (kW) | 0.58 | 0.77 | 0.97 |
| COP | 5.17 | 5.20 | 5.17 |
| * Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | |||
| Heating Capacity (kW) | 2.30 | 3.00 | 3.85 |
| Power Input (kW) | 0.55 | 0.71 | 0.92 |
| COP | 4.18 | 4.20 | 4.18 |
| * General data | |||
| Power supply | 220V/1/50Hz | ||
| Max Power Input (kW) | 0.70 | 0.90 | 1.14 |
| Max Current (A) | 3.2 | 4.8 | 5.8 |
| Water Flow Volume (m3/h) | 1.5 | 2.0 | 2.5 |
| Advised pool size m3 | 0~10 | 5~16 | 8~20 |
| Refrigerant | R32 | ||
| Water connection (mm) | 32 or 38 | ||
| Heat Exchanger | Titanium | ||
| Air Flow Direction | Horizontal | ||
| Working temp. range (℃) | 12~43 | ||
| Casing Material | ABS+Metal | ||
| Noise level (dBa) 10m | 45 | 46 | 48 |
| Net Weight (kg) | 18 | 22 | 26 |
| Gross Weight (kg) | 20 | 24 | 30 |
| Net Dimensions (mm) | 380*290*370 | 420*365*440 | |
| Package Dimensions (mm) | 440*355*400 | 480*435*490 | |
