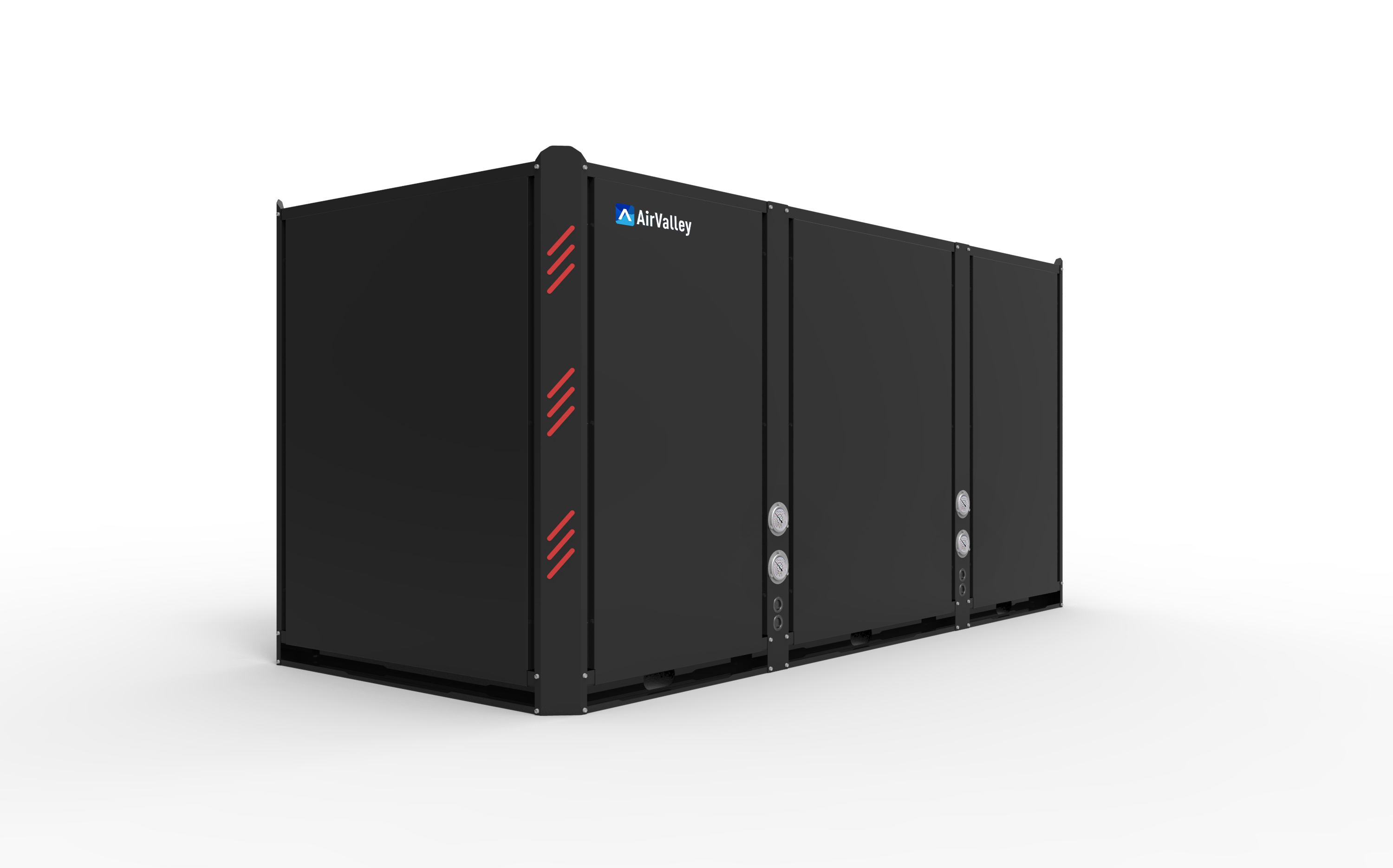

High temperature Water source heat pump water heater
Features:
Panasonic compressor
"Small Size" "big horsepower"!
Relying on the mature technology of B series. More optimized motor design. Excellent vibration and noise characteristics.
High reliability bearings, increased oil pool volume.
Building intelligent control to improve management reliability
Modbus is an open protocol that is widely used, especially in BMS building control systems. The unit can be connected to the BMS system through the Modbus protocol to realize remote control of multiple air cooling and heat pump modules.
Modular design, more flexible installation
Unit modules of different capacity specifications can be freely combined, and a maximum of 16 units can be connected in parallel, with strong compatibility and scalability. According to the site characteristics of the installation site, the user can choose a variety of combination connection methods to realize the parallel use of 1-16 modules, and the maximum cooling capacity is as high as 2080kW, fully meeting different needs. The air-cooled module units of the same system are started in stages and run in a balanced manner, reducing the impact of the starting current of the units on the power grid.
Multiple protection functions
To ensure the safe operation of the system, a modular structure is adopted, and the units are started in stages to reduce the impact of the starting current of the units on the power grid. The unit is equipped with high and low pressure switches, antifreeze protection devices, water flow switches, overload protection devices, power supply phase sequence protection devices, etc., and is equipped with an operation control device. When a fault occurs, the controller will automatically alarm in real time.
Wide running range, Heat source side temperature from 9℃ to 30℃.
Water side heat exchanger
High-efficiency shell & coil heat exchanger for hot water side is adopted, with water in the tube and fluorine outside the tube. High heat exchange efficiency, small size, excellent water quality, strong antifreeze ability, stable and reliable

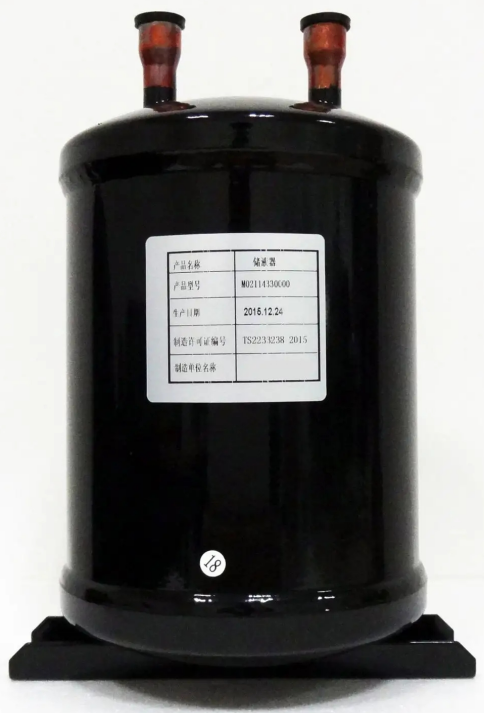

Gas-liquid separator
A large gas-liquid separator is used to prevent liquid from entering the compressor under low temperature conditions, ensuring more reliable system operation.
SANHUA Electronic expansion valve
High precision electronic expansion valve: use electronic expansion valve for controlling, reach 500 steps adjustment, adjust super heat degrees accurately, achieve high efficiency operation system.
Electric control
The electric control adopts famous and high-quality components, and the quality is guaranteed; at the same time, the electric control box is set on the front, which is quick to install and easy to maintain.
Wifi function for option, control your heat pump in your smartphone anywhere, anytime.
R134A refrigerant, ODP=0
