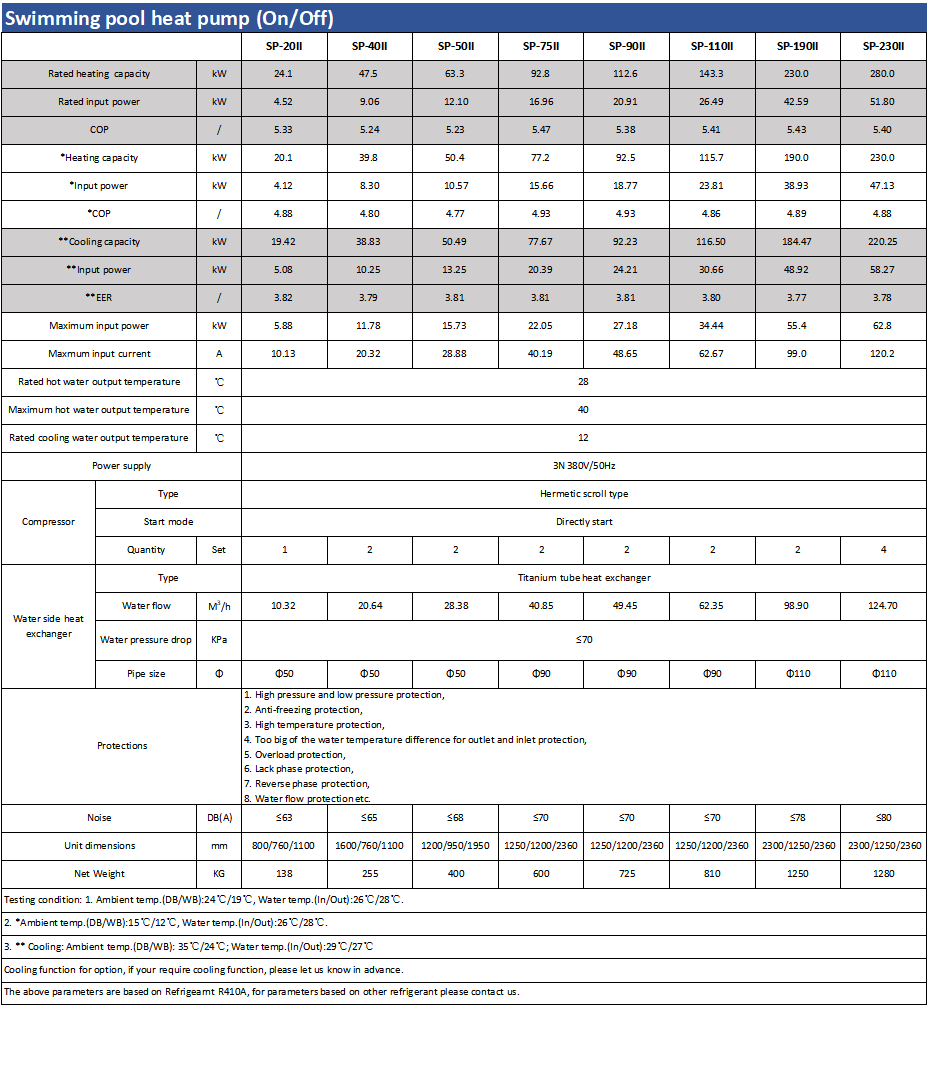

Swimming pool heat pump (On/Off)
Panasonic compressor
"Small Size" "big horsepower"!
Relying on the mature technology of B series. More optimized motor design. Excellent vibration and noise characteristics.
High reliability bearings, increased oil pool volume.

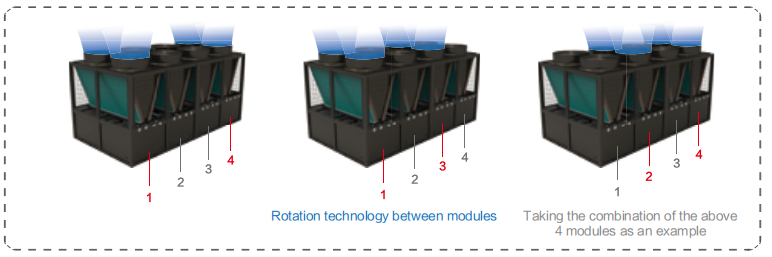

Modular rotation work
According to the load conditions of the system, the unit rotates the module units that are turned on first, and distributes the running time of each module unit in a balanced manner, which greatly improves the reliability and service life of the unit.

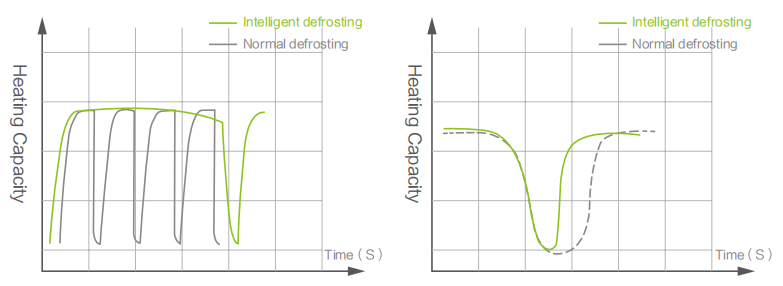

Intelligent defrosting technology to reduce heating attenuation
Air-cooled heat pump units are prone to frosting when the air density is low and the humidity is high. The air-cooled heat pump module unit can accurately judge the defrosting timing according to the main parameters of the heating operation and the load change, so as to achieve defrosting with frost and normal heating without frost, and can perform forced manual defrosting according to the actual situation .

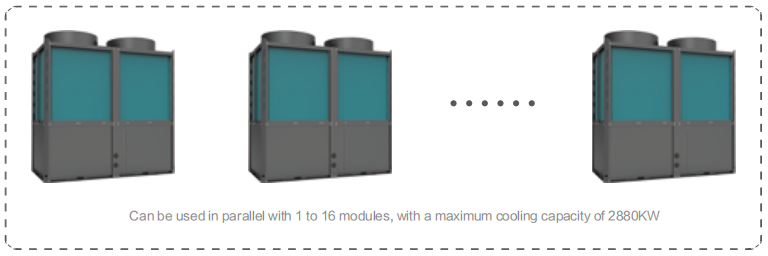

Modular design, more flexible installation
Unit modules of different capacity specifications can be freely combined, and a maximum of 16 units can be connected in parallel, with strong compatibility and scalability. According to the site characteristics of the installation site, the user can choose a variety of combination connection methods to realize the parallel use of 1-16 modules, and the maximum cooling capacity is as high as 2080kW, fully meeting different needs. The air-cooled module units of the same system are started in stages and run in a balanced manner, reducing the impact of the starting current of the units on the power grid.

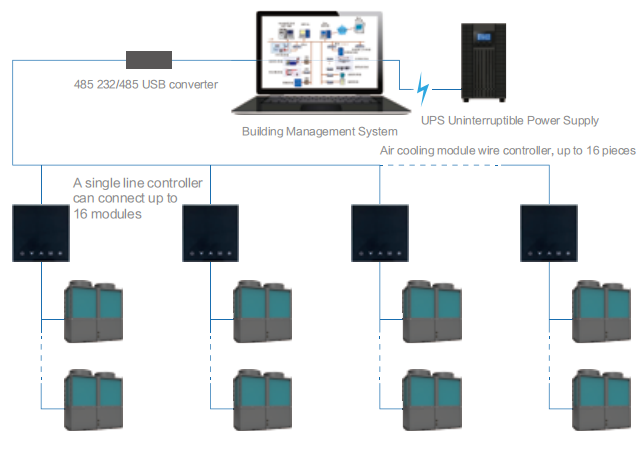

Building intelligent control to improve management reliability
Modbus is an open protocol that is widely used, especially in BMS building control systems. The unit can be connected to the BMS system through the Modbus protocol to realize remote control of multiple air cooling and heat pump modules.
Wide running range, from -7℃ to 43℃.

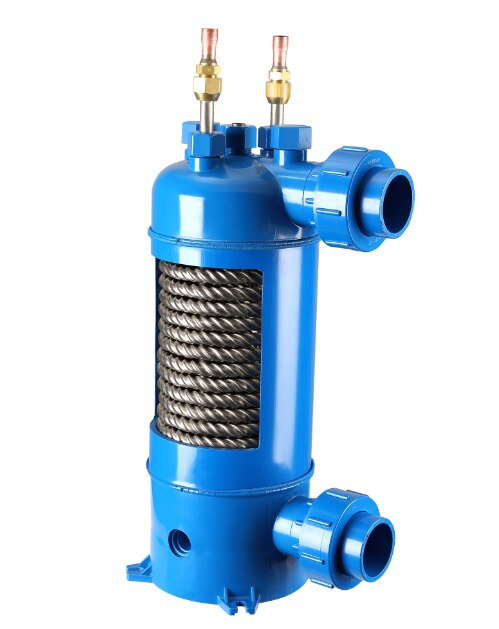

Titanium tube heat exchanger
Adopt professional material of PVC for the shell, which meets the requirements of environmental protection ROHS. PPR material for option for pool temperature requirement higher than 45 deg C, long lifetime for the heat exchanger;
One-step forming top cover and base cover, can work under pressure of 2.5Mpa;
Pure titanium seamless tube, acid and alkali resistance, good corrosion resistance, can work under refrigerant pressure of 5.3Mpa.

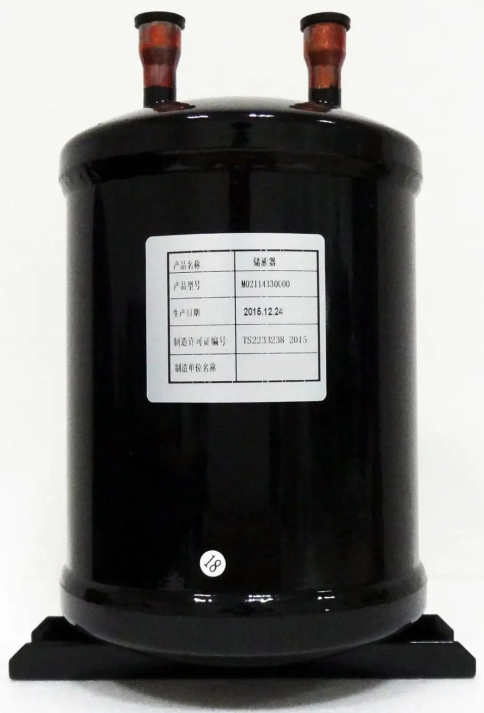

Gas-liquid separator
A large gas-liquid separator is used to prevent liquid from entering the compressor under low temperature conditions, ensuring more reliable system operation.
Fan, motor
Large air volume, low noise blades; High torque, high efficiency motor.
High efficiency and low noise.
SANHUA Electronic expansion valve
High precision electronic expansion valve: use electronic expansion valve for controlling, reach 500 steps adjustment, adjust super heat degrees accurately, achieve high efficiency operation system.

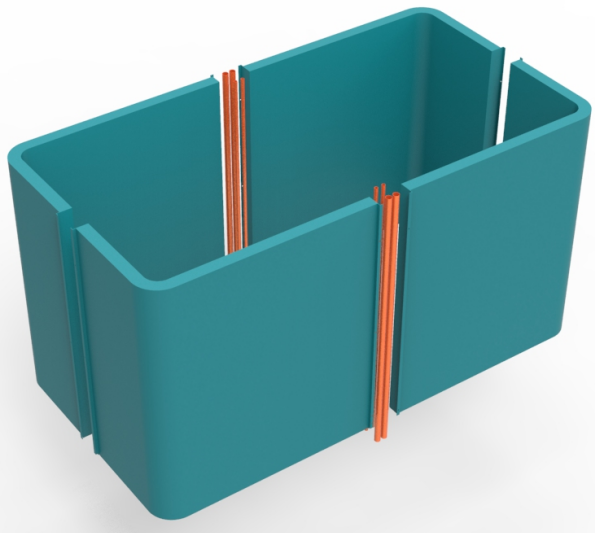

The blue hydrophilic aluminum foil fin heat exchanger adopts cross-type multi-flow path design to make the heat exchange more uniform; the internal thread copper tube design has higher heat transfer efficiency; at the same time, the hydrophilic fins are not easy to form water droplets, Spreading into a uniform water film completely on the surface of fins, eliminates the generation of water bridges, which greatly improves the heat exchange capacity and heat exchange efficiency between the aluminum foil and the flowing air.
Electric control
The electric control adopts famous and high-quality components, and the quality is guaranteed; at the same time, the electric control box is set on the front, which is quick to install and easy to maintain.
Wifi function for option, control your heat pump in your smartphone anywhere, anytime.
R410A refrigerant, ODP=0
