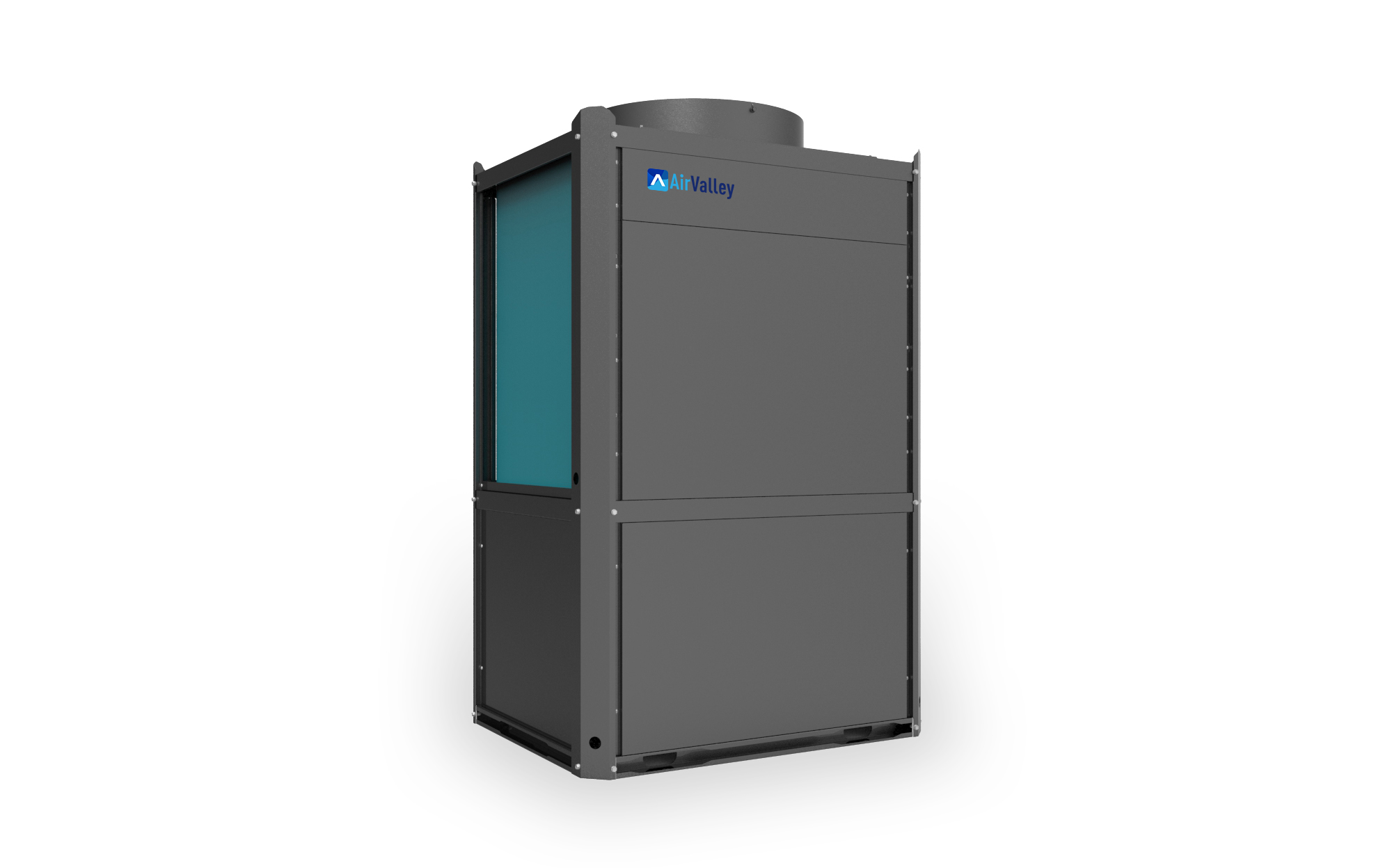

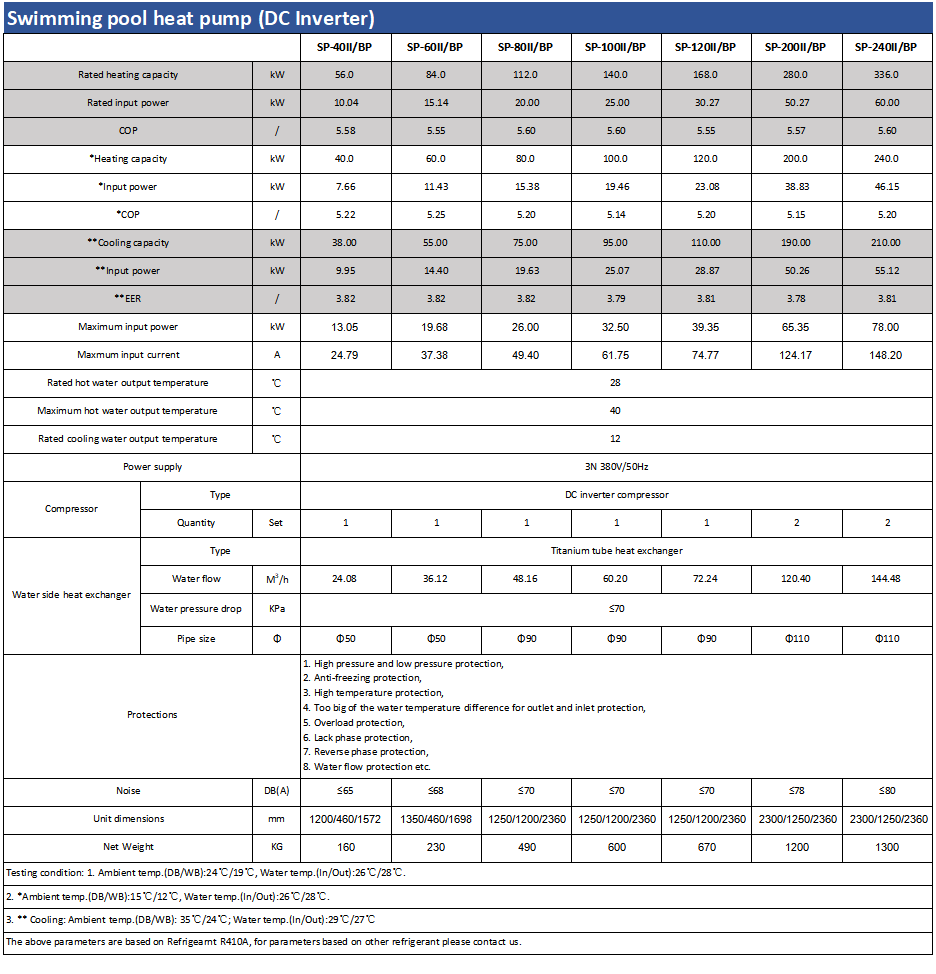

Swimming pool heat pump (DC Inverter)
Features:
Danfoss DC Inverter scroll compressor

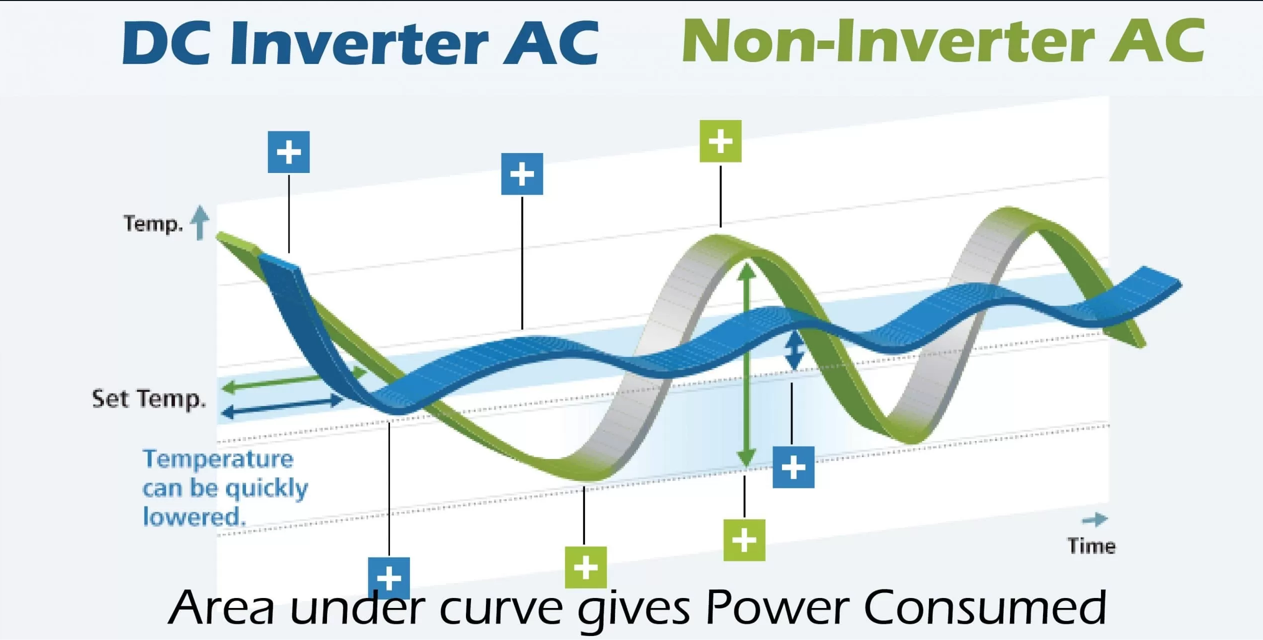

30% higher energy efficiency than fixed speed systems
The DC inverter regulation scheme improves the energy efficiency of partial loads by up to 30% compared with the fixed speed system.

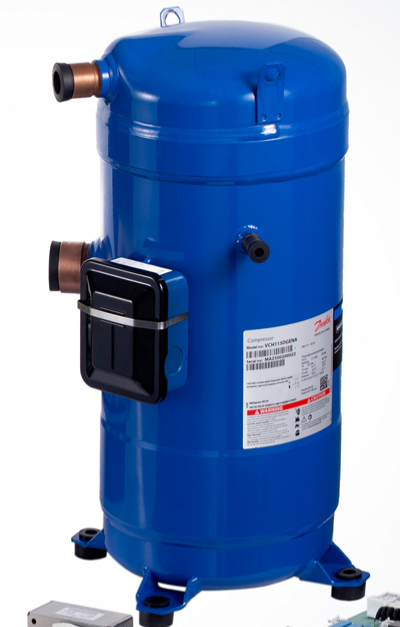

As a leader in HVAC technology to meet environmental and energy challenges, Danfoss has developed the VCH115 DC inverter scroll compressor. It features a permanent magnet motor (IPM) design that gives you greater efficiency
1. Optimized scroll compression ratio for heat pump applications, combined with jet technology to optimize efficiency
2. Increase the diameter of the jet pipeline to reduce pipeline vibration
3. Optimize the structural design to reduce the noise of the compressor at high speed
4. The newly designed high-efficiency motor improves the efficiency under partial load conditions
5. The oil filter can reduce the oil churning phenomenon when the compressor is running
6. The compact shape of the compressor is conducive to the layout of the system unit

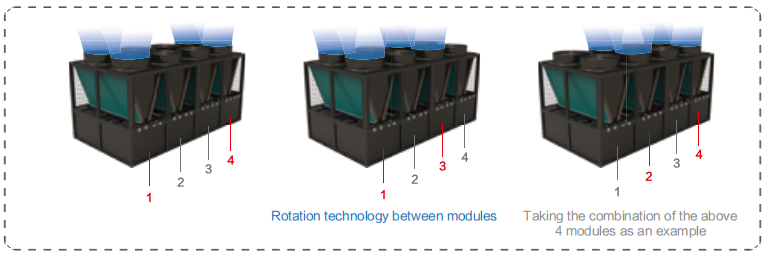

Modular rotation work
According to the load conditions of the system, the unit rotates the module units that are turned on first, and distributes the running time of each module unit in a balanced manner, which greatly improves the reliability and service life of the unit.

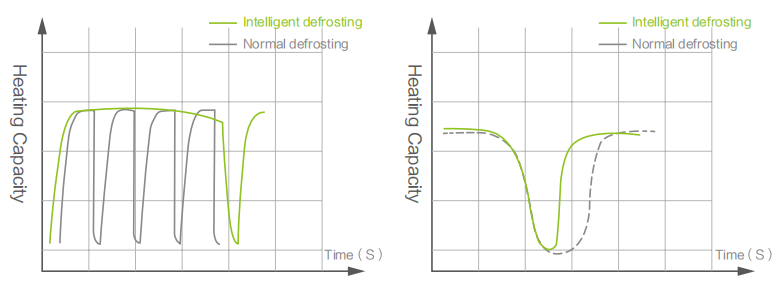

Intelligent defrosting technology to reduce heating attenuation
Air-cooled heat pump units are prone to frosting when the air density is low and the humidity is high. The air-cooled heat pump module unit can accurately judge the defrosting timing according to the main parameters of the heating operation and the load change, so as to achieve defrosting with frost and normal heating without frost, and can perform forced manual defrosting according to the actual situation .

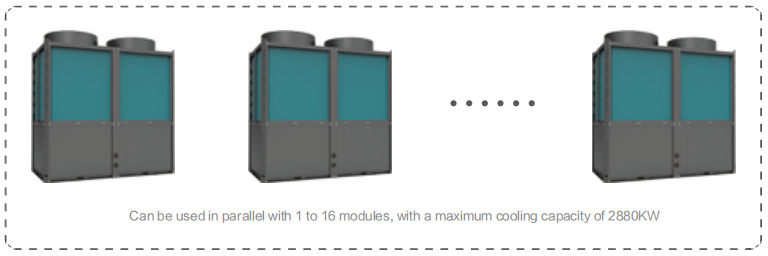

Modular design, more flexible installation
Unit modules of different capacity specifications can be freely combined, and a maximum of 16 units can be connected in parallel, with strong compatibility and scalability. According to the site characteristics of the installation site, the user can choose a variety of combination connection methods to realize the parallel use of 1-16 modules, and the maximum cooling capacity is as high as 2080kW, fully meeting different needs. The air-cooled module units of the same system are started in stages and run in a balanced manner, reducing the impact of the starting current of the units on the power grid.

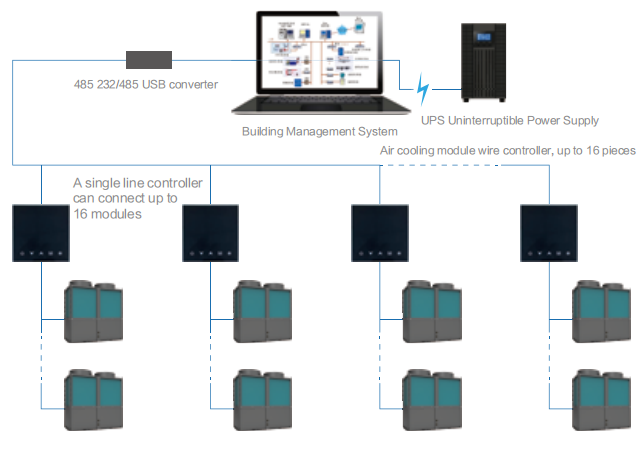

Building intelligent control to improve management reliability
Modbus is an open protocol that is widely used, especially in BMS building control systems. The unit can be connected to the BMS system through the Modbus protocol to realize remote control of multiple air cooling and heat pump modules.
FULL DC INVERTER TECHNOLOGY
Wide running range, from -7℃ to 52℃.

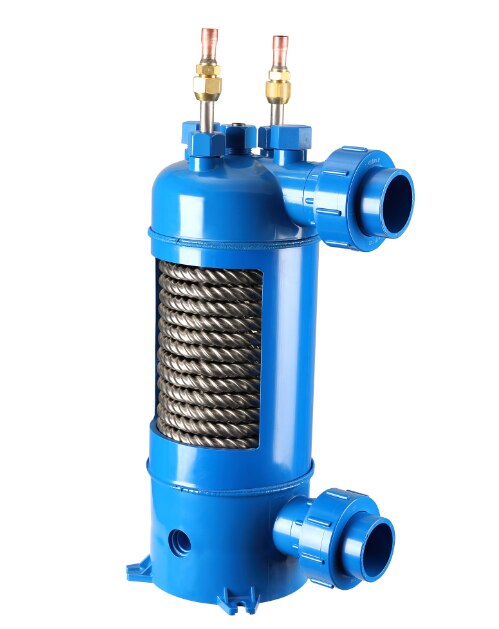

Titanium tube heat exchanger
Adopt professional material of PVC for the shell, which meets the requirements of environmental protection ROHS. PPR material for option for pool temperature requirement higher than 45 deg C, long lifetime for the heat exchanger;
One-step forming top cover and base cover, can work under pressure of 2.5Mpa;
Pure titanium seamless tube, acid and alkali resistance, good corrosion resistance, can work under refrigerant pressure of 5.3Mpa.

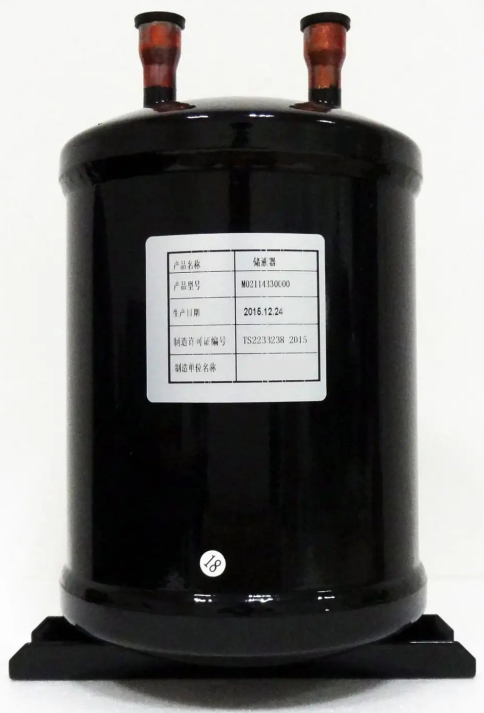

Gas-liquid separator
A large gas-liquid separator is used to prevent liquid from entering the compressor under low temperature conditions, ensuring more reliable system operation.
Fan, motor
Large air volume, low noise blades; High torque, high efficiency motor.
High efficiency and low noise.
Top quality Sensata pressure sensor
Excellent precision, excellent mechanical resistance and EMC protection characteristics, meeting the most stringent application requirements under various pressure conditions
FUJIKOJI Electronic expansion valve
High precision electronic expansion valve: use electronic expansion valve for controlling, reach 500 steps adjustment, adjust super heat degrees accurately, achieve high efficiency operation system.
Electric control
The electric control adopts famous and high-quality components, and the quality is guaranteed; at the same time, the electric control box is set on the front, which is quick to install and easy to maintain.
Wifi function for option, control your heat pump in your smartphone anywhere, anytime.
R410A refrigerant, ODP=0
